DDCSV3.1 CNC Controller System USB 500KHz 3/4 Axis

DDCSv3.1 manual

Brief Introduction:

DDCSV3.1 is a 3 or 4-axis motion controller for stepper and servo systems. We are very proud of this product; it combines great power with a tiny footprint and is easy to use. After a very short time, you will be familiar with the functions and this manual will help you. The highest output pulse per axis is 500 kHz. The pulse width is adjustable (refer to the driver manual). The control period of each position is only 4 milliseconds. This provides high control precision for stepper motors and servo motors.

DDCSV3.1 numerical control system adopts the ARM+FPGA design framework.  ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse. This guarantees reliable control and easy operation. The internal operating system is Linux based. The panel layout structure of the CR8-500 is very rational to save space. Only 17 keys control all operations and a comprehensive G code set is supported.

DDCSV3.1 can be used for many styles and types of CNC machines. Lathes, Routers, Pick & Place, and Mills are examples. The CR8-500 operates as a Stand Alone system without the need for a computer. This guarantees high precision, accuracy, and reliability. The interface, even very comprehensive, can be learned in a concise time.

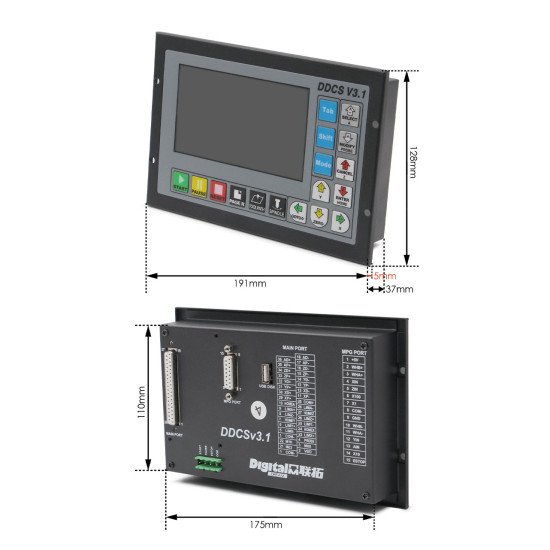

DDCS V3.1 is a small box that can fit in a window of a small control box or control cabinet. Four locking hooks fix this controller from the frame. The dimension you find in pictures 1-1 and pictures 1-2.

The front panel is 191mm*128mm*5mm；

The main body is 191mm*128mm*37mm；

To mount the unit in an equipment cabinet, cut the hole182.5mm*59mm

1 x CNC Motion Controller

1 x USB Extension Cable

1 x USB flash disk

Standalone Motion Controller;

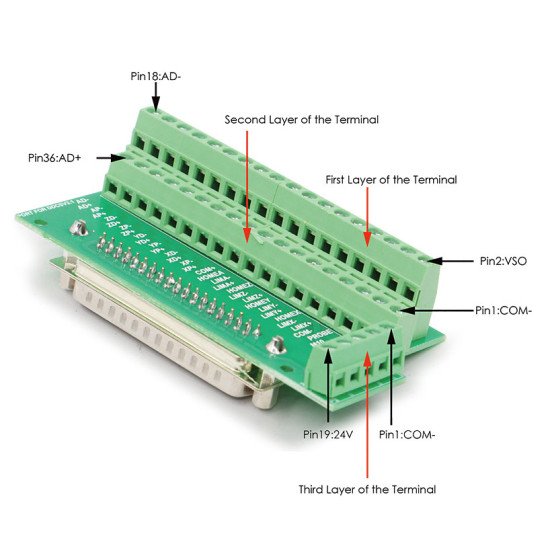

16 opto-isolated digital inputs, 3 opto-isolated digital outputs

Analog spindle control 0-10V spindle control (can be modified as PWM output);

3-axis motor control, max 500 kHz per axis;

ARM9 main control chip;

FPGA core algorithm chip;

4.3 inches TFT screen, resolution ratio: 480×272;

17 operation keys;

18V-32V power input, minimum 0.5A;

USB flash disk supports G code file input;

1GB internal memory;

MPG port for our MPG with digital display. Many other MPGs also supported;

Jog function for each axis (continuous, step, defined distance;

Support the operation of quickly specifying the running position;

Support for “Power Cut” recovery. Data is automatically saved.
