MKx-M4 Mach4 CNC USB Controller

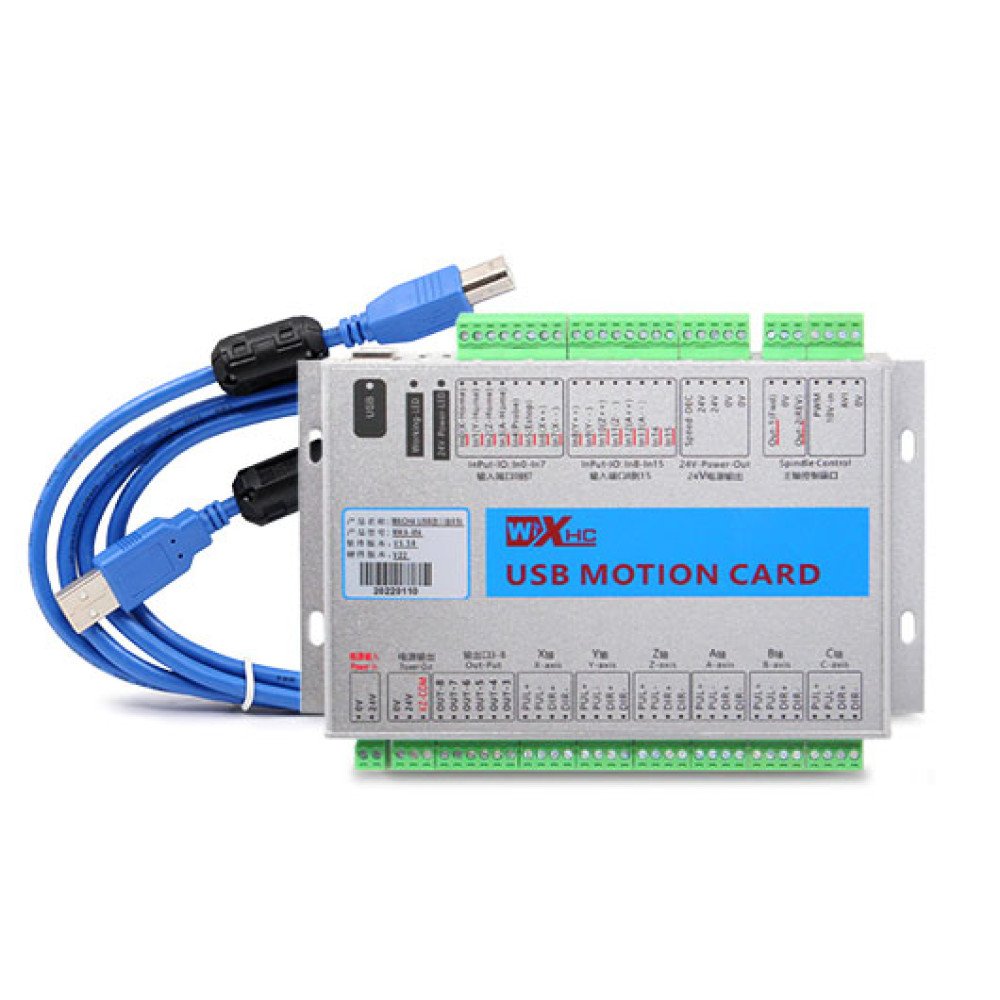

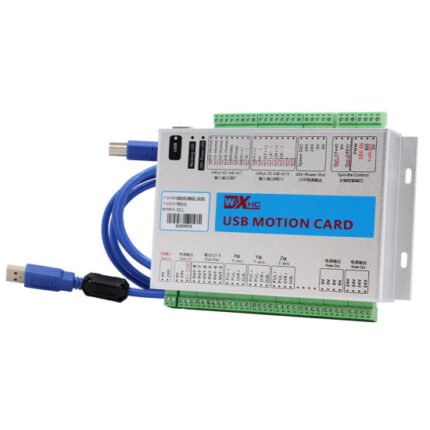

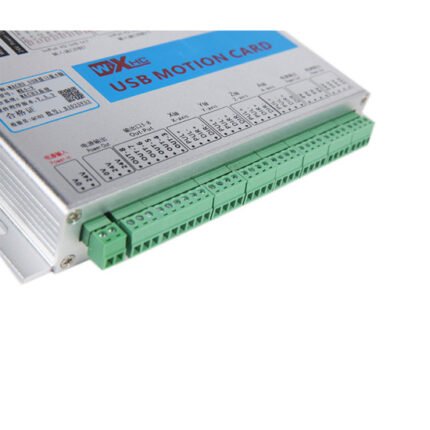

XHC MKX-M4 Mach4 USB Motion Controller 3/4/6 Axis Frequency 2000KHZ Mach4 CNC USB Controller For CNC Engraving Cutting Machine

The XHC MKX-M4 is a motion control card designed for CNC engraving and cutting machines. It is the latest generation of XHC motion control cards and offers several features and specifications to enhance the performance of the machine. Here are the key features of the MKX-M4 card:

Features:

• Dual-Processors: The card is equipped with dual processors, combining ARM and FPGA for increased processing power, which helps in achieving better performance.
• Mach4 Compatibility: The MKX-M4 card is designed to work specifically with Mach4 software, offering support for all versions of Mach4. However, it does not support Mach3.
• Operating System Compatibility: The card is designed to work with 32-bit operating systems, specifically for Windows. It is not compatible with Mac OS.
• Spindle Speed Feedback: The card supports spindle speed feedback, allowing you to monitor and control the rotational speed of the spindle on your CNC machine.
• USB Connectivity: The card features a USB jack that does not require driver installation. It supports plug-and-play functionality on all versions of Windows, making it easy to set up and use.
• USB Hot-Swapping: The card supports USB hot-swapping, meaning you can unplug and plug in the USB cable while Mach4 is running without any connection issues.
• 6-Axis Linkage: The card supports 6-axis linkage, allowing for precise control over the movement of your CNC machine.
• Maximum Step-Pulse Frequency: The card has a maximum step-pulse frequency of 2000 kHz, enabling high-speed and precise control. It can be connected to both servo drivers and stepper drivers.
• Indicator Light: The card features an indicator light that shows various working statuses, including USB connection and Mach4 connection.
• Input and Output Ports: The card provides 16 input and 8 output ports. It also supports extended I/O control, allowing for additional connectivity options.
• Onboard Isolated Power Supply: The card has an onboard isolated power supply, eliminating the need for an external power supply.
• Isolated and Stable Performance: All I/O ports on the card are fully isolated, offering strong anti-interference capabilities and stable performance.
• Spindle Speed Control: The card supports spindle speed control with options for PWM output, pulse + direction output, and analog voltage output (0-10V).

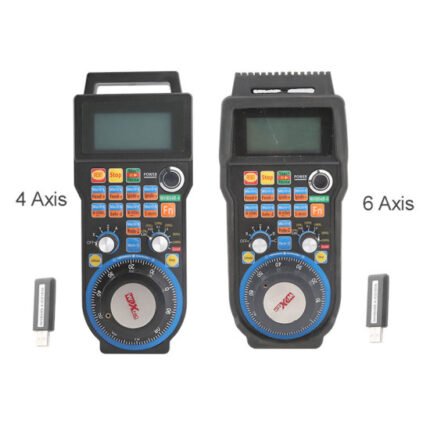

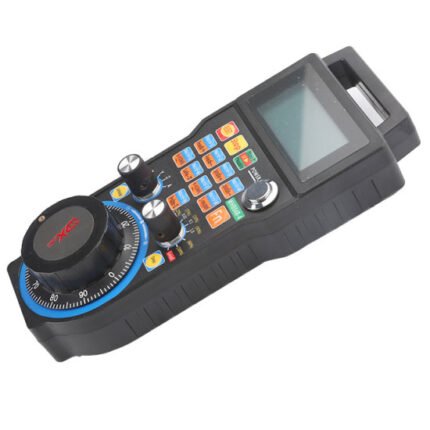

• XHC Series MPG Support: The card is compatible with XHC series wireless electronic Mach4 MPG devices, such as the WHB04B-4-M4 MPG.
• Aluminum Shell: The card is housed in an aluminum shell, which effectively shields interference and ensures stable and reliable performance.

The XHC MKX-M4 card is designed for CNC engraving and cutting machines, offering compatibility with Mach4 software, support for up to 6-axis linkage, USB connectivity, spindle speed control, and various other features to enhance the performance of your CNC machine.

Mach4 is our newest version of CNC motion control software.

Note: we don’t offer Mach4 software. If you need it, you could purchase it through mach software’s site as follow:

https://nssmcs.com/

Package Contents:

1 x CNC Mach4 USB 6 Axis Motion Control Card
1 x USB Cable
